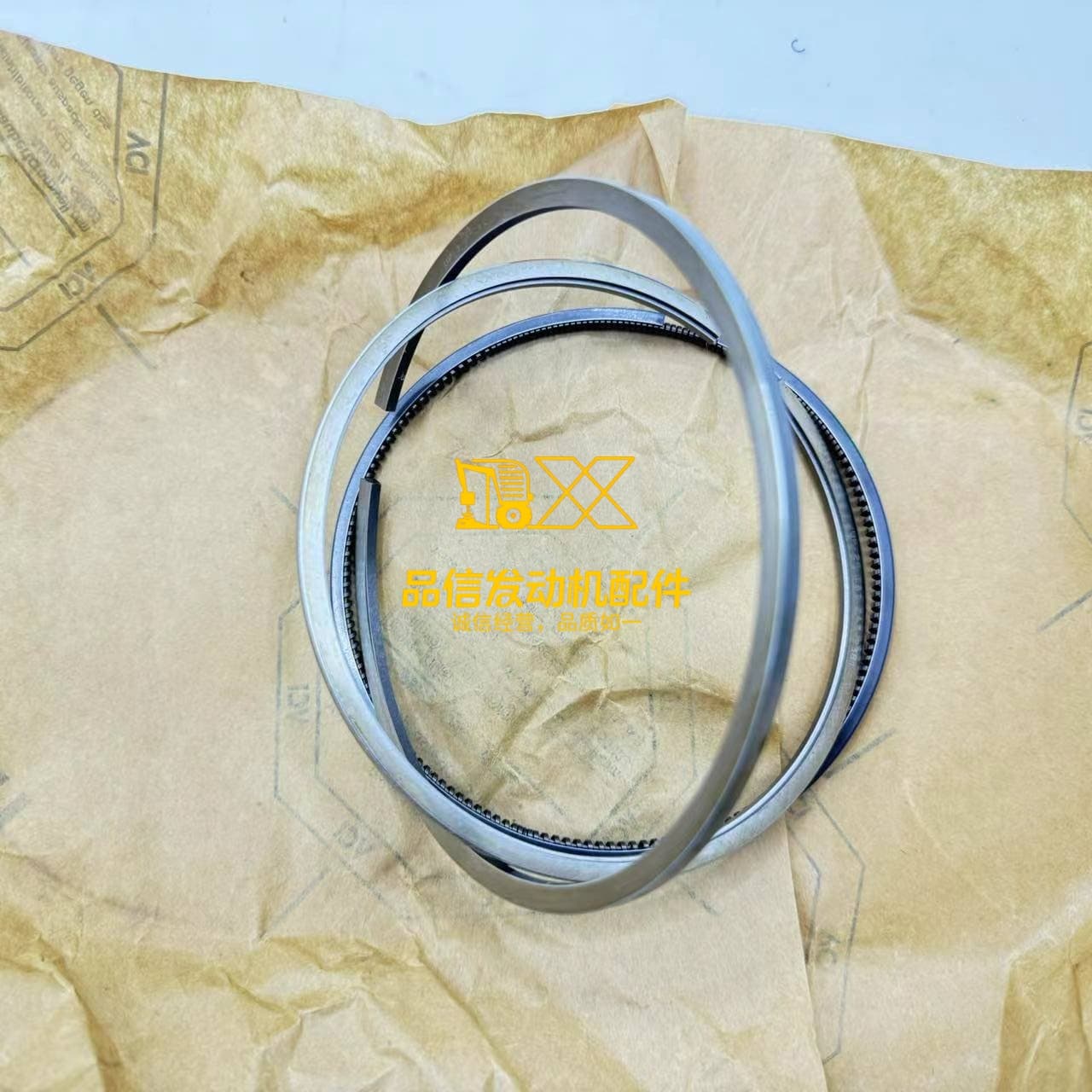

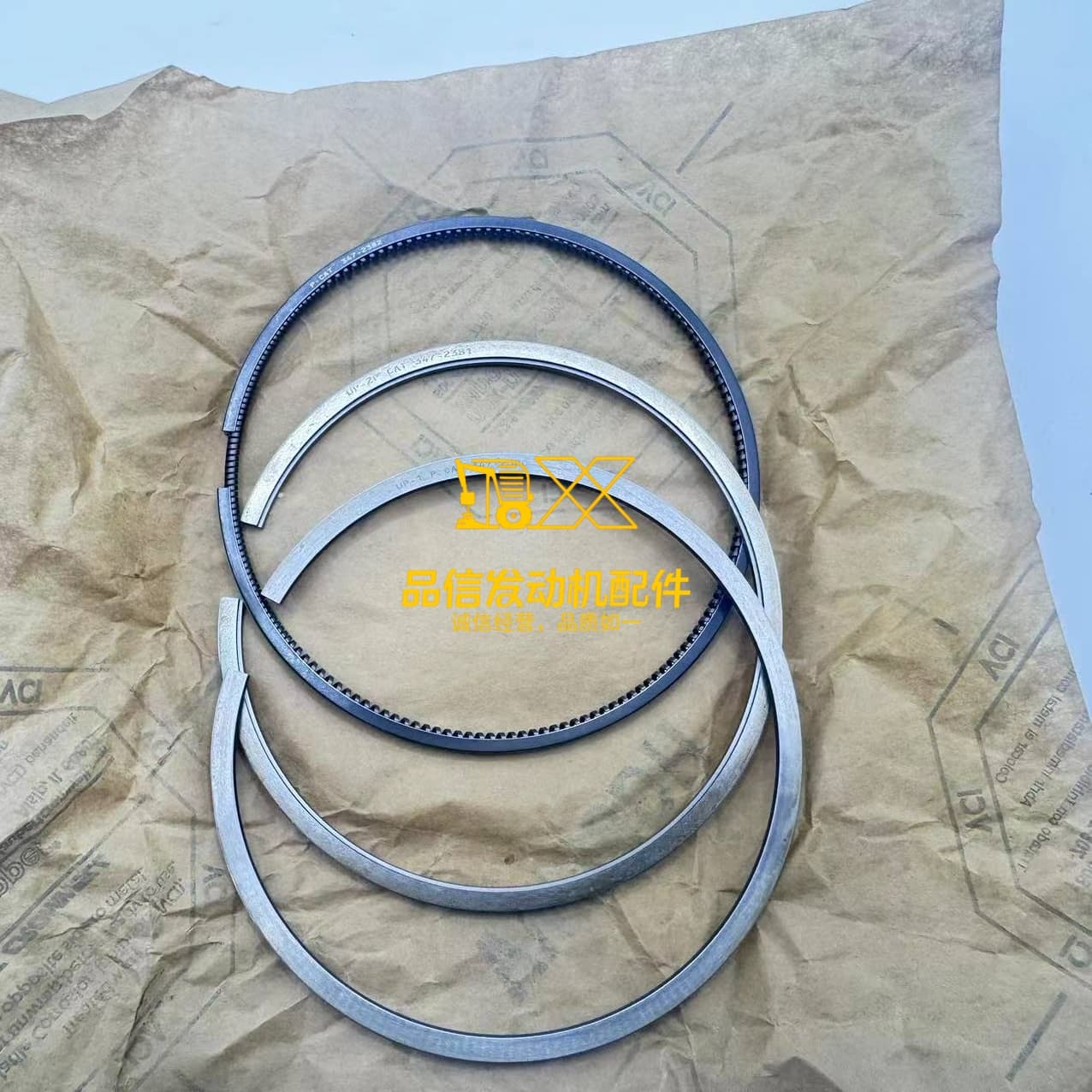

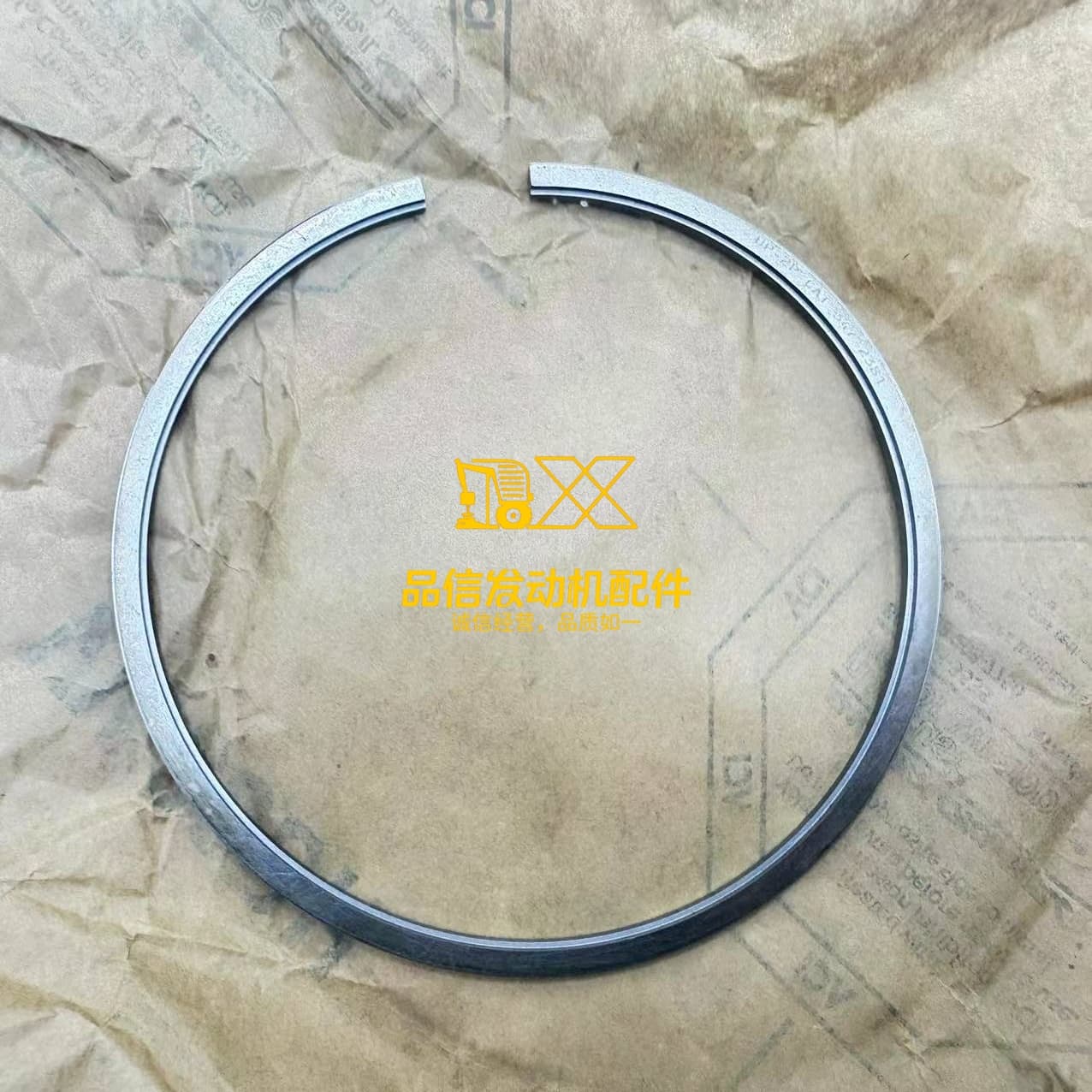

Diesel Engine Parts Cat Fit for Caterpillar C-9 C9 Ring, Piston

Product Overview

Ensure optimal engine performance and longevity with this high-quality piston ring set designed specifically for Caterpillar C-9 and C9 diesel engines. This set includes the top, intermediate, and oil rings, manufactured to precise specifications to provide a perfect fit and reliable sealing for combustion and oil control.

Whether you are performing a complete engine overhaul or routine maintenance, using the correct, quality rings is crucial for maintaining compression, reducing oil consumption, and ensuring efficient power output from your Cat C-9 engine.

Product Specifications

Engine Model: Caterpillar C-9 / C9
Part Type: Piston Ring Set
Includes: Top Ring, Intermediate Ring, Oil Ring
Top Ring Part Number: 197-9392 (1979392)
Intermediate Ring Part Number: 161-3424 (1613424)
Oil Ring Part Number: 168-7211 (1687211)
Fitment: Direct replacement / Cat Fit

Key Features and Advantages

Precision Engineered: Manufactured to strict specifications ensuring proper tension and fit within the piston grooves and cylinder bore.
Durable Materials: Constructed from high-grade materials resistant to heat, wear, and corrosion, ensuring long service life.
Optimized Sealing: Provides superior combustion sealing for maximum power and efficiency, and effective oil control to minimize consumption and emissions.
Direct Replacement: Designed as a direct fit for Caterpillar C-9/C9 engines, facilitating easier installation.
Reliable Performance: Restores lost compression and helps maintain engine health and performance.

Applicable Equipment

This piston ring set is specifically designed to fit and function within the following engines:

Caterpillar C-9 Diesel Engines
Caterpillar C9 Diesel Engines

These engines are commonly found in a wide range of Caterpillar heavy equipment and other industrial applications.

Application Scenarios & Case Insights

Caterpillar C-9/C9 engines are workhorses in demanding environments, and properly functioning piston rings are vital to their operation. This ring set is essential for equipment operating in:

Construction Sites: Powering excavators, bulldozers, loaders, and motor graders used for earthmoving, site preparation, and material handling. Reliable rings ensure consistent hydraulic power and traction.
Mining Operations: Found in haul trucks, large excavators, and other heavy machinery tackling tough terrain and heavy loads. Engine compression is critical for maintaining power under extreme conditions.
Industrial Applications: Used in generator sets, pumps, and industrial power units providing consistent and reliable power for various operations. Effective sealing prevents energy loss and maintains fuel efficiency.
Commercial Transportation: Some older or specialized trucks and buses may feature C9 engines, where efficient combustion is needed for performance and fuel economy.

Case Insight: A construction company noticed decreased power and increased oil consumption from an excavator with a C9 engine. A diagnostic revealed worn piston rings. Replacing the old rings with this specific Cat fit set restored engine compression to factory specifications, significantly reduced oil usage, and brought the machine back to peak operating efficiency, minimizing downtime and improving job site productivity.

Installation and Maintenance Troubleshooting

Proper installation and maintenance are key to the performance and lifespan of piston rings. Here are common issues and solutions:

Issue: Incorrect Ring Orientation/Placement.
Solution: Always refer to the Caterpillar service manual for the specific C-9/C9 engine. Rings often have markings ("TOP") indicating their orientation. Ensure rings are seated in the correct piston grooves (Top, Intermediate, Oil).
Issue: Damaged Rings During Installation.
Solution: Use appropriate piston ring compressors and installation tools. Avoid forcing rings or over-expanding them, which can cause breakage or distortion.
Issue: Cylinder Bore Issues (Wear, Taper, Out-of-Round).
Solution: Piston rings cannot compensate for severely worn or damaged cylinder bores. Always inspect cylinder liners or bores according to manual specifications. Honing or replacement may be necessary for proper ring seating and sealing.
Issue: Contaminants or Improper Lubrication.
Solution: Ensure all components and the engine environment are clean during assembly. Use clean, recommended engine oil and sufficient lubrication during installation. Follow recommended oil change intervals.
Issue: Symptoms of Worn Rings (Excessive Smoke, Low Compression, High Oil Consumption, Power Loss).
Solution: These symptoms indicate potential ring failure or cylinder wear. A compression test, leak-down test, and visual inspection are needed. Replacement of rings (and potentially liners) is usually required.

Always consult a qualified mechanic and the official Caterpillar service manual for detailed procedures and specifications.
