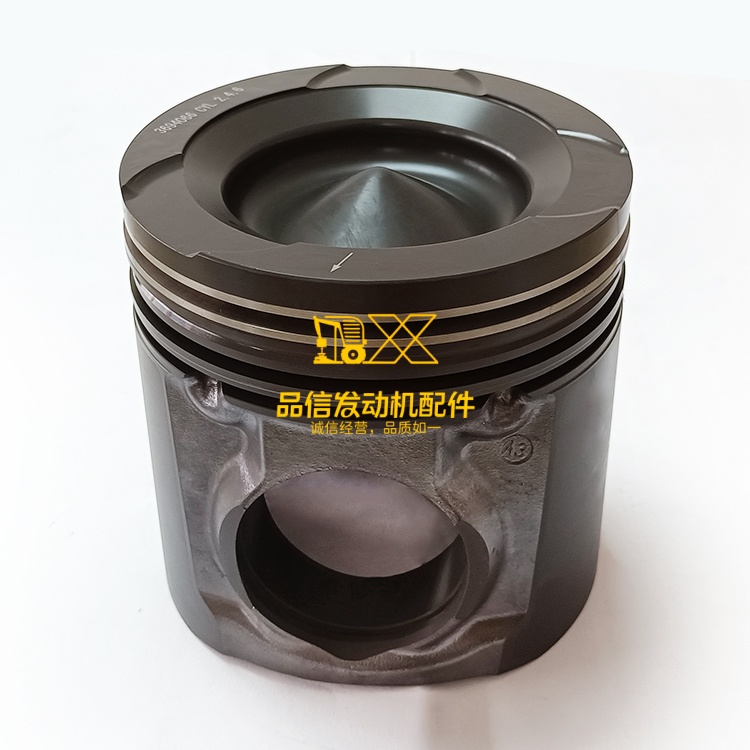

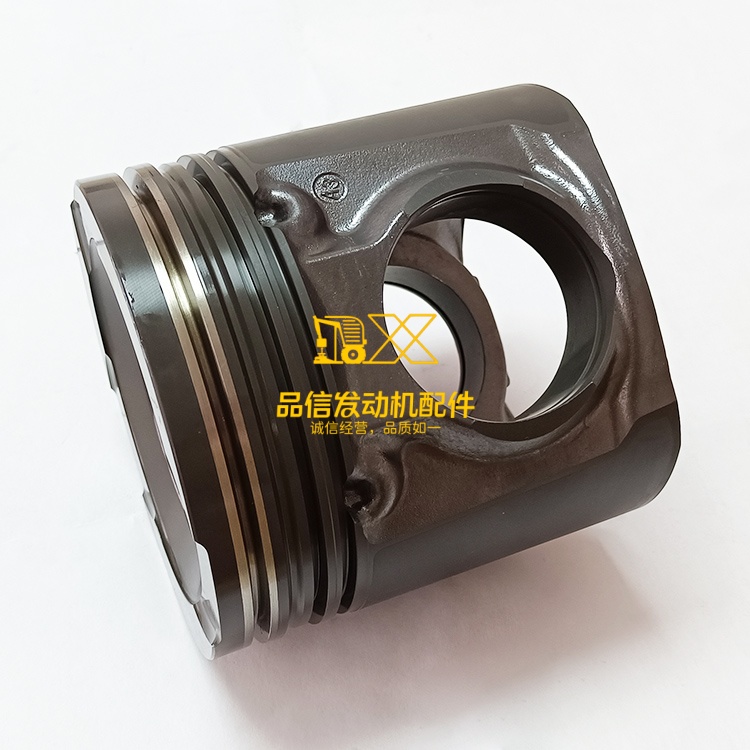

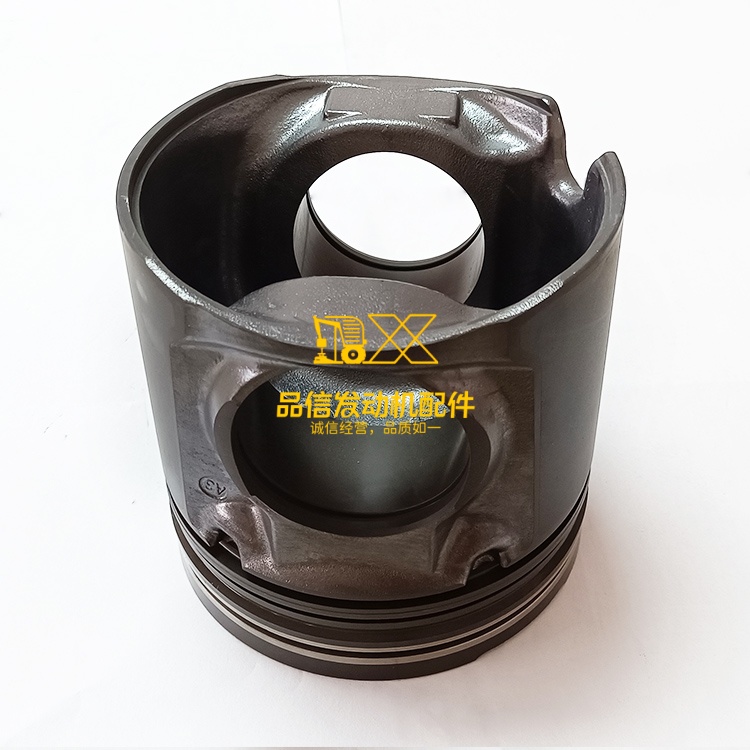

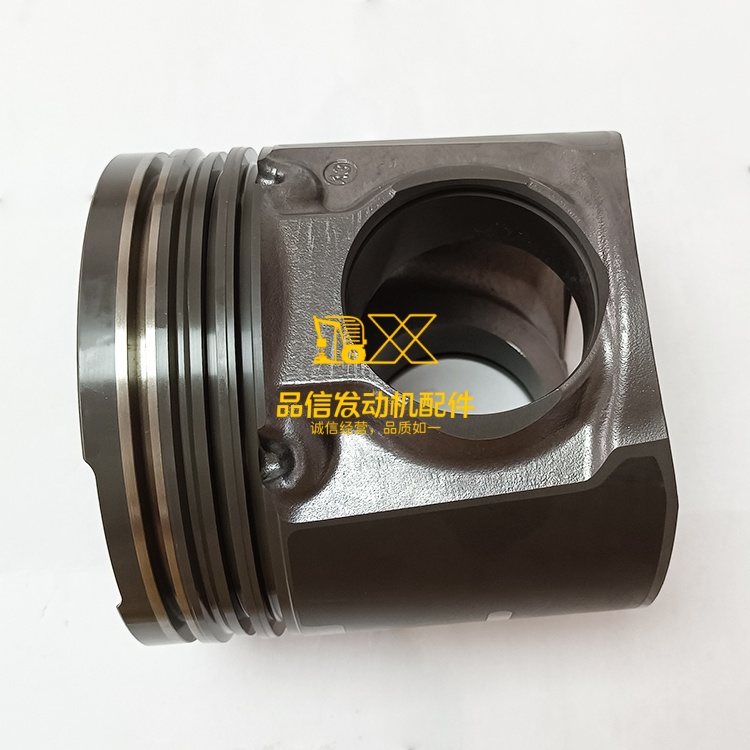

Cummins ISGE ISG12 X12 Engine Piston - High Performance Replacement (PNs: 3694066, 3694526, 3697698, 3697618, 4352404, 5472974)

Product Introduction

Engine pistons are vital components in the internal combustion process, converting the energy released from burning fuel into mechanical work. Our high-quality replacement pistons for Cummins ISGE, ISG12, and X12 engines are engineered to deliver reliable performance and durability. Designed to meet or exceed OEM specifications, these pistons (covering part numbers 3694066, 3694526, 3697698, 3697618, 4352404, and 5472974) are manufactured using advanced materials and processes to ensure a perfect fit and long service life in demanding operating conditions.

Key Specifications

Part Numbers: 3694066, 3694526, 3697698, 3697618, 4352404, 5472974
Compatible Engines: Cummins ISGE, ISG12, X12
Material: High-strength Aluminum Alloy with reinforced features (e.g., steel insert for top ring groove)
Design: Features include specific combustion bowl design, cooling gallery (where applicable by PN), and skirt coating for reduced friction.
Quality: Manufactured to precise dimensions and material standards.
Type: Replacement Piston

Why Choose This Piston? (Product Advantages)

Durability: Constructed from premium materials for extended lifespan under high stress and temperature.
Reliable Performance: Engineered for consistent power delivery and fuel efficiency.
Perfect Fit: Manufactured to exact specifications for seamless installation and optimal engine function.
Corrosion & Wear Resistance: Advanced materials and coatings protect against harsh engine environments.
Cost-Effective Solution: Provides a high-quality alternative for engine repair and maintenance.

Applicable Equipment

These pistons are specifically designed for Cummins ISGE, ISG12, and X12 series engines. These powerful and efficient engines are widely used in various heavy-duty applications, including:

Heavy-Duty Trucks (e.g., Freightliner, International, Volvo, Kenworth, Peterbilt models equipped with ISG12 or X12)
Passenger Buses and Coaches
Vocational Vehicles (e.g., Dump Trucks, Concrete Mixers, Refuse Trucks)
Certain Industrial Applications powered by ISG12 or X12 engines

Application Scenarios & Case Analysis

The Cummins ISG12 and X12 engines are workhorses in environments demanding high power, fuel efficiency, and reliability over long distances or under heavy loads.

Typical Scenarios:

Long-Haul Transportation: Ensuring peak engine performance for trucks traveling across continents.
Regional Distribution: Providing reliable power for frequent stops and starts in urban and suburban areas.
Construction & Mining Support: Powering vocational trucks operating in challenging off-road or job site conditions.
Public & Private Transportation: Maintaining efficient operation of buses and coaches for passenger comfort and schedule adherence.

Case Example: A North American trucking company operating a fleet of trucks with Cummins X12 engines experienced increased oil consumption and reduced power output in several high-mileage units. By replacing the worn pistons with these high-quality aftermarket pistons, they were able to restore engine compression, significantly reduce oil consumption, and regain original performance levels, extending the operational life of their vehicles without the higher cost of a new engine.

Related Products

To ensure a complete and effective engine overhaul or repair, consider replacing related components simultaneously. We also offer high-quality replacement parts compatible with Cummins ISGE, ISG12, and X12 engines, such as:

Piston Ring Sets
Piston Pins & Retainers (Circlips)
Cylinder Liners (Kits)
Connecting Rod Bearings
Main Bearings
Engine Overhaul Gasket Kits

Installation Tips & Troubleshooting

Proper installation is crucial for the longevity and performance of your new piston.

Common Issues & Solutions:

Issue: Incorrect piston ring gap or orientation leads to poor compression and oil consumption.
Solution: Always check ring end gap against service manual specifications. Ensure rings are installed in the correct groove and oriented correctly (check for "TOP" marks).
Issue: Damage to piston skirt or ring grooves during installation.
Solution: Use appropriate piston ring compressors and handling tools. Lubricate the piston and cylinder bore correctly before insertion.
Issue: Improper torque on connecting rod bolts.
Solution: Follow the manufacturer's torque specifications and sequence precisely using a calibrated torque wrench. Incorrect torque can lead to bearing failure or rod damage.
Issue: Cylinder bore not properly cleaned or measured.
Solution: Ensure cylinder bore is clean and honed if necessary. Measure bore diameter and taper/roundness to confirm it's within specifications before installing new pistons.
Issue: Using incorrect or contaminated lubricant.
Solution: Use clean engine oil recommended by the manufacturer for assembly.

Recommendation: Always refer to the specific Cummins ISGE, ISG12, or X12 service manual for detailed step-by-step installation procedures and specifications. If you are not experienced with engine internals, it is highly recommended to have installation performed by a qualified technician.
